Self-operated Bov Aerosol Filling Machine
Semi Automatic BOV Aerosol Filling MachinePRODUCT PARAMETERS
|
Filling capacity (cans/min) |
10-15 cans/min |
|
Liquid filling volume (ml) |
（30-300ml） |
|
Liquid filling accuracy |
≤±1% |
|
Applicable cans diameter (mm) |
35-70 ( can be customized) |
|
Applicable cans height (mm) |
70-330 ( can be customized) |
|
Applicable valve (mm) |
25.4 (1 inch) |
|
Propellant |
N2, compressed air |
|
Max gas consumption (m3/min) |
1m3/min |
|
Power (KW) |
AC 220V/50HZ |
|
Air source |
0.6-0.7Mpa |

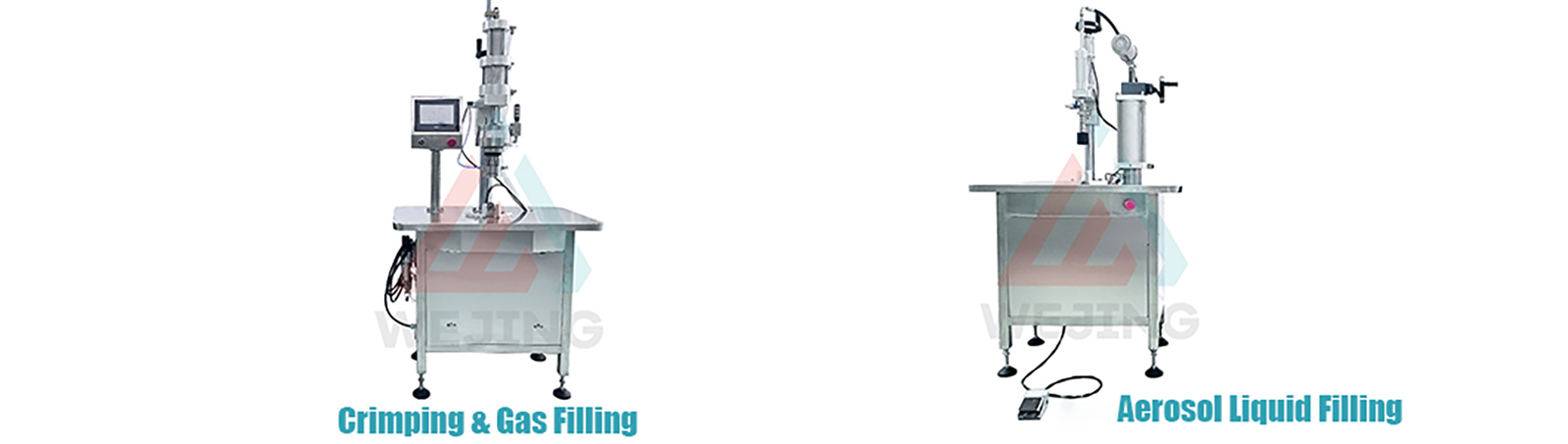

1. Independent operation: Two machines operate independently, allowing for flexible adjustment of production pace according to production needs and improving equipment utilization.
2. Specialized division of labor: Focusing on the operations of sealing, inflating, and filling liquids respectively, can better ensure the quality of each link.
2. Specialized division of labor: Focusing on the operations of sealing, inflating, and filling liquids respectively, can better ensure the quality of each link.
3. Easy to maintain: If one machine malfunctions, it will not affect the normal operation of the other machine, making it convenient for repair and maintenance.
4. Strong scalability: The number of equipment can be increased according to the expansion of production scale to achieve the expansion of the production line.
4. Strong scalability: The number of equipment can be increased according to the expansion of production scale to achieve the expansion of the production line.
Working Process
1. Preparation work: Check the equipment status, prepare materials and gas sources, and prepare aerosol cans.
2. Can loading operation: Place the aerosol can accurately on the workstation.
3. Sealing: The sealing mechanism is activated, and the mold is in contact with the can mouth, sealing the can mouth by heating and pressing.
4. Inflation: Immediately open the inflation valve and inject a specific pressure gas to ensure that the pressure meets the requirements.
5. Liquid filling: After inflation is completed, the filling system accurately injects the liquid into the tank and strictly controls the filling volume.
6. Testing: Conduct liquid level, weight, and sealing tests on the filled cans.
7. Bottling: After passing the inspection, it is transported out of the workstation and enters the subsequent packaging process. This filling machine integrates sealing, inflation, and filling functions, improving production efficiency and product quality.
2. Can loading operation: Place the aerosol can accurately on the workstation.
3. Sealing: The sealing mechanism is activated, and the mold is in contact with the can mouth, sealing the can mouth by heating and pressing.
4. Inflation: Immediately open the inflation valve and inject a specific pressure gas to ensure that the pressure meets the requirements.
5. Liquid filling: After inflation is completed, the filling system accurately injects the liquid into the tank and strictly controls the filling volume.
6. Testing: Conduct liquid level, weight, and sealing tests on the filled cans.
7. Bottling: After passing the inspection, it is transported out of the workstation and enters the subsequent packaging process. This filling machine integrates sealing, inflation, and filling functions, improving production efficiency and product quality.
PRODUCT Applications
Bov split type aerosol filling machine can be widely used in multiple fields. In the field of personal care, it covers the filling of sunscreen spray, moisturizing spray, hair styling spray and other products. In the pharmaceutical industry, it can be used for the production of wound care spray, nasal spray and oral spray. In terms of home cleaning, it can be filled with products such as computer cleaning agents. In addition, it is also suitable for the production of aerosol products such as small bottle fire extinguishers. For example, people's daily use of sunscreen spray can effectively block ultraviolet rays, and the filling machine can achieve efficient filling; Medical nasal spray can relieve symptoms of rhinitis patients; Computer cleaning agents used for home cleaning can safely clean computer equipment; Small bottle fire extinguishers provide convenient protection for fire safety.
